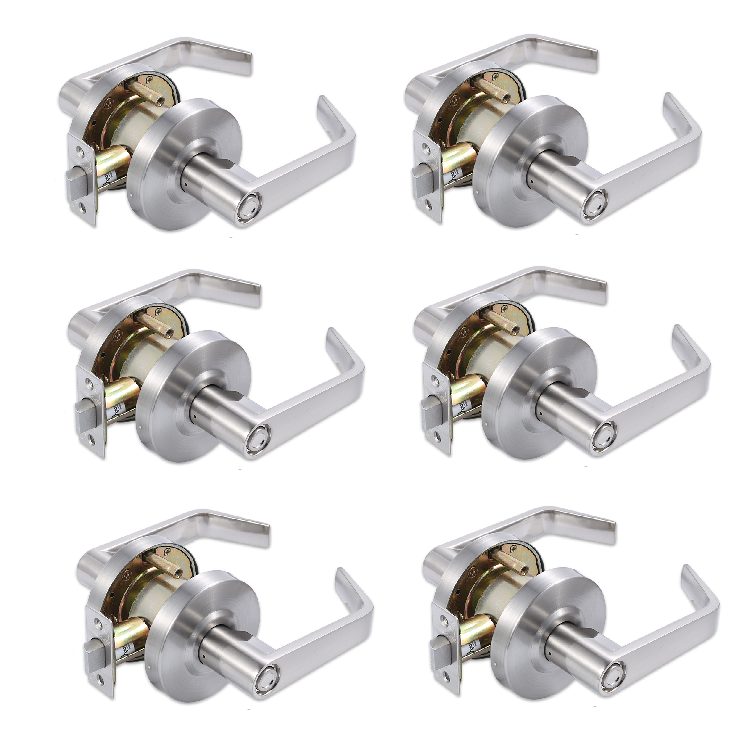

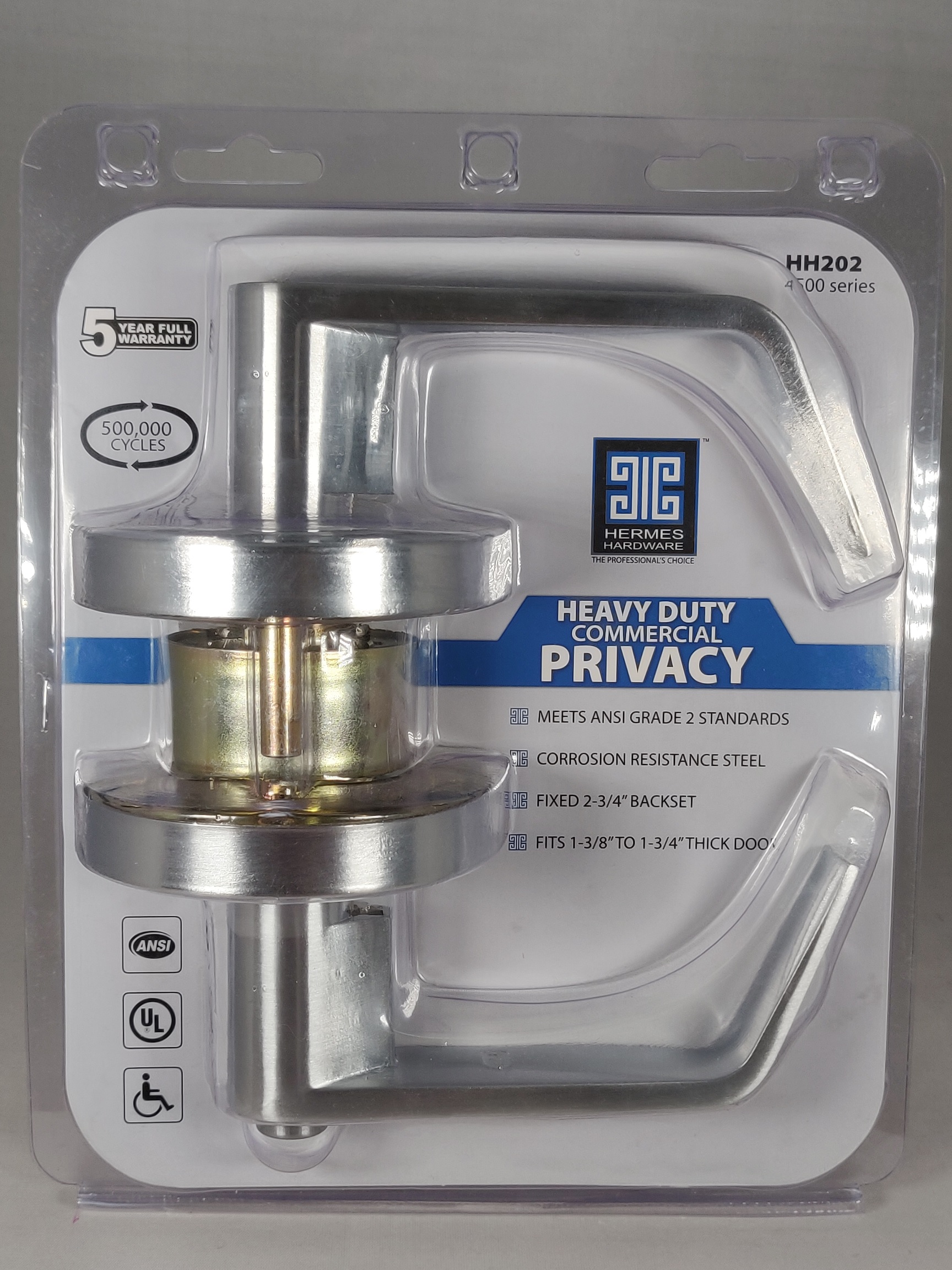

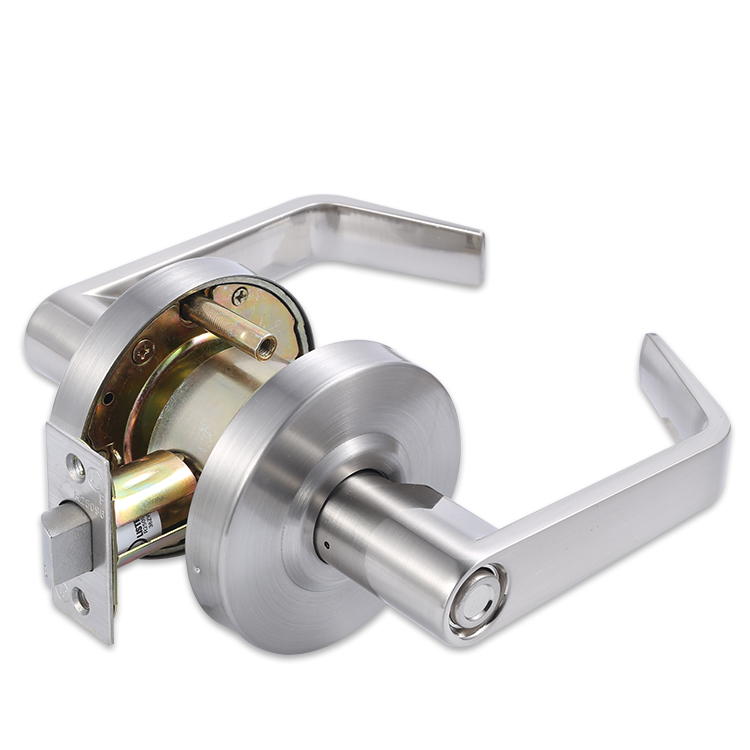

Hermes Hardware Grade 2 Commercial Heavy Duty ,UL Fire Rated 3h (Privacy / Bathroom – 6 Pack)

• Meets ANSI Grade 2 Standards
• 500.000 Cycles
• Fits 1 3/8” to 1-3/4’” thick doors
• Finish: Satin Chrome 26D
• Fixed 2 ¾” backset

Specifications:

• Door Prep: Cross bore 2-1/8″, Edge bore 1″ , Latch face 1-1/8″x2-1/4″.
• Backset: Fixed 2-3/4″.
• Door Thickness: 1-3/8″–1-3/4″.
• Handing: Completely reversible.
• Strike ANSI: 4-7/8” Comes with standard ANSI 4-7/8″ x 1-1/4″ square corner strike
• Face plates: 1-1/8″ x 2-1/4″square corner .
• Bolt: 1/2″ throw, stainless steel.
• ANSI/BHMA :Certified A156.2 – Grade 2 (exceeds 500,000 cycles)
• Strikes: 2-1/4″  full lip square corner standard.

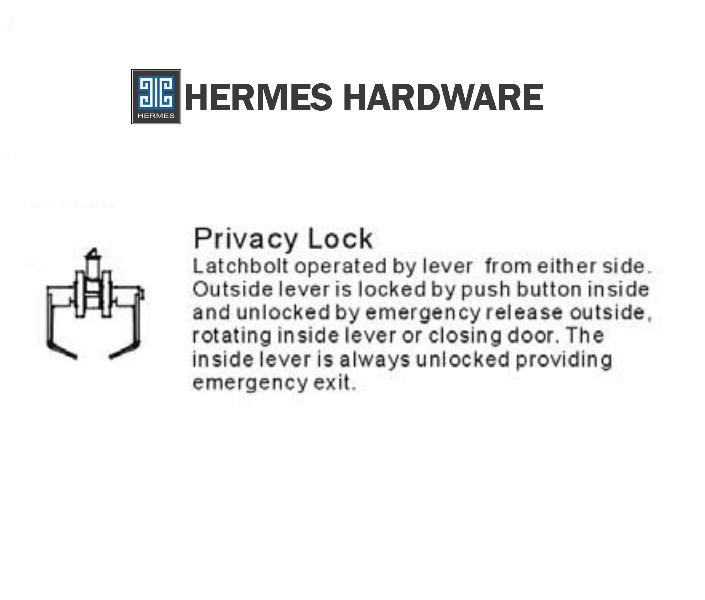

• Latchbolt operated by lever from either side. Outside lever is locked by push button inside and unlocked  by emergency release outside, rotating inside lever or closing door. The inside lever is always unlocked providing emergency exit.
• Concealed screw mounting.
• High precision pick resistant 6-pin tumbler solid brass cylinder. Interchangeable with leading manufacturer cylinders.
• Cylindrical body provides great strength and durability. Two sides spindle supporting mechanism eliminates lever wobble.
• Coil compression springs provide great strength and durability.

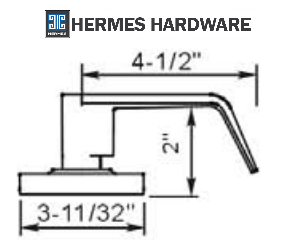

• Full length lever handle with 3/8″ return
• Anti-sag mechanism with independent lever return springs.
• UL 3 Hour Rated 1/2″ Throw deadlatch completely reversible for flat and beveled doors. Stainless steel latch bolt and faceplate.
• FINISH AVAILABLE: Satin Chrome.
